LC116. Populating Next Right Pointers in Each Node¶
Problem Description¶
LeetCode Problem 116: You are given a perfect binary tree where all leaves are on the same level, and every parent has two children. The binary tree has the following definition:
struct Node { int val; Node left; Noderight; Node *next; }
Populate each next pointer to point to its next right node. If there is no next right
node, the next pointer should be set to NULL.
Initially, all next pointers are set to NULL.
Clarification¶
- Perfect binary tree
- What does it mean to populate each next pointer to point to its next right node? binary tree already uses left and right. Update the next node to point to the right node. If not exist, set it to Null
Assumption¶
-
Solution¶
Approach 1: Level Order Traversal¶
We can use BFS to traverse nodes level by level by using a queue. For each level, pop the node and update its next node with the first node in the queue (using peek) and add its left and right nodes to the queue if exists. If no next node available, update the next with null.
class Solution:
def connect(self, root: 'Optional[Node]') -> 'Optional[Node]':
if not root:
return root
queue = deque([root])
while queue:
size = len(queue)
for i in range(size):
node_i = queue.popleft()
# Update next node
if i < size - 1:
node_i.next = queue[0]
# Add left and right nodes to the queue
if node_i.left:
queue.append(node_i.left)
if node_i.right:
queue.append(node_i.right)
return root
Complexity Analysis of Approach 1¶
- Time complexity: \(O(n)\)
Each node is processed exactly once. For processing each node, it takes \(O(1)\) time to popping the node from the queue and establishing the next pointer. - Space complexity: \(O(n)\)
Since it is a perfect binary tree which means the last level contains \(n/2\) nodes. So the space complexity of the queue depends on the maximum number of nodes in a level, i.e., the last level. So the time complexity is \(O(n/2) = O(n)\).
Approach 2: Use established next pointers in upper level¶
Refer to detailed explanations in LC Editorial section.
The main idea is when at level \(k - 1\), establishes the next pointers for level \(k\).
Once done with connections , move to level \(k\) and do the same thing for \(k + 1\). Note
that for level 0, it only has one root node and the next pointer is already established.
When traverse a particular level with nodes connected. Think of nodes on that level formulate a linked list with head on the leftmost node.
When establish connections in the next level, there are two types of next pointer connections:

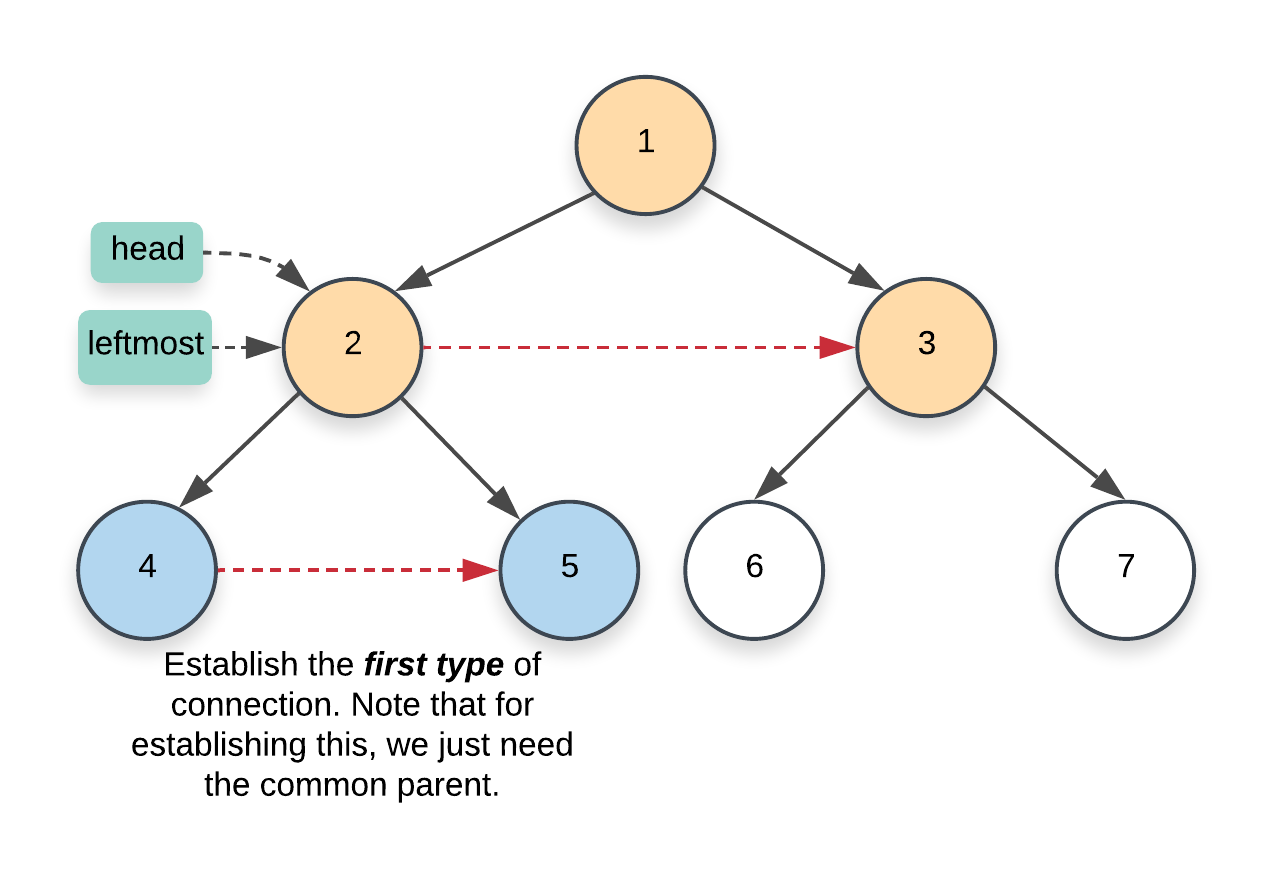

- connection between the two children of a given node.

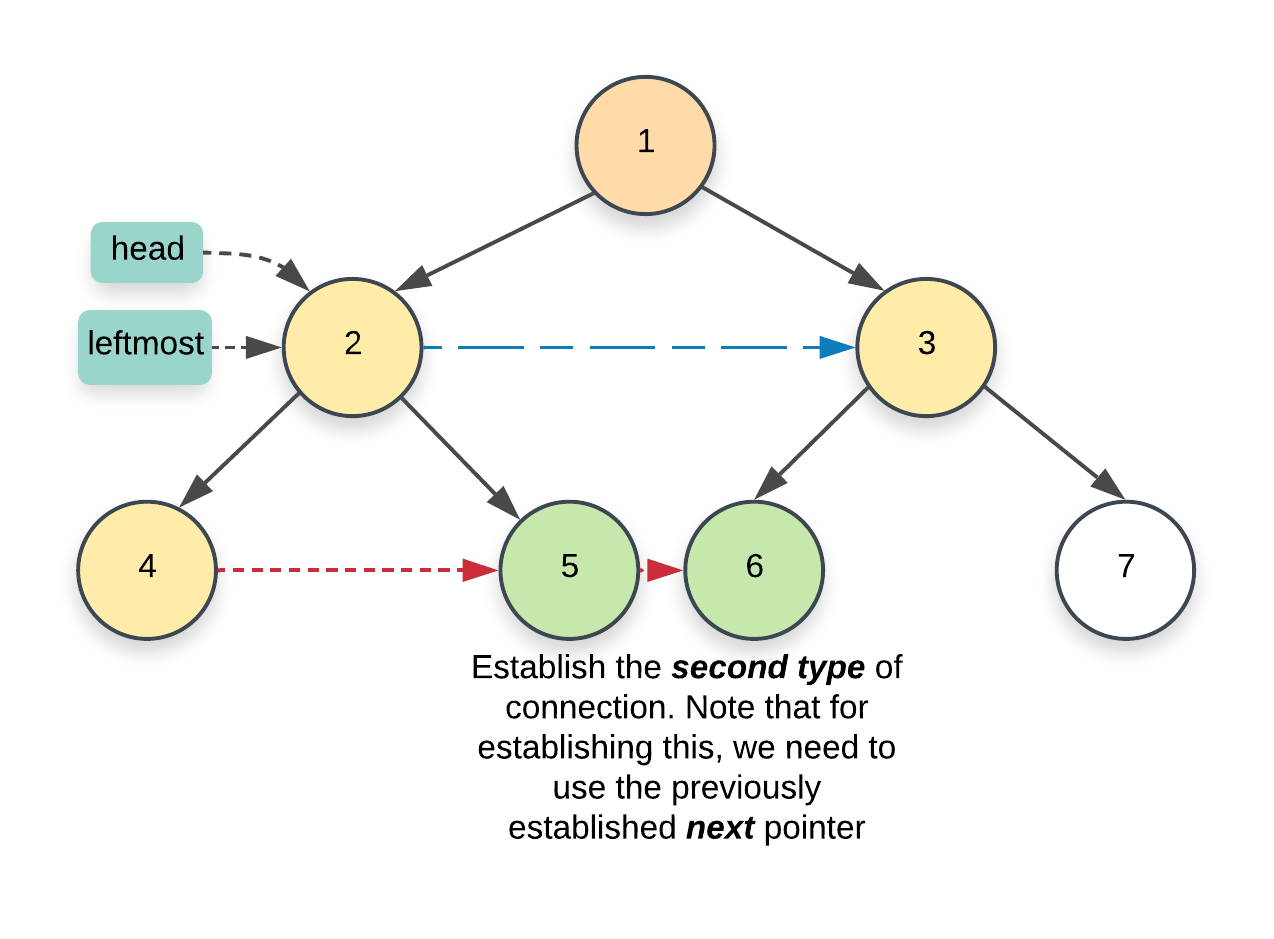

- connection between nodes which have a different parent.
class Solution:
def connect(self, root: 'Optional[Node]') -> 'Optional[Node]':
if not root:
return root
leftmost = root
# It's done when reaching the final level
while leftmost.left:
# Establishing the corresponding links for the next level
head = leftmost
while head:
# Link left and right children nodes
head.left.next = head.right
# Link children nodes between two parent nodes
if head.next:
head.right.next = head.next.left
head = head.next # Move to next node on the same level
# Move to the next level
leftmost = leftmost.left
return root
Complexity Analysis of Approach 2¶
- Time complexity: \(O(n)\)
Similar to solution 1, it process \(n\) nodes exactly once. - Space complexity: \(O(1)\)
No additional data structure used.
Comparison of Different Approaches¶
The table below summarize the time complexity and space complexity of different approaches:
| Approach | Time Complexity | Space Complexity |
|---|---|---|
| Approach 1 - Level Order Traversal | \(O(n)\) | \(O(n)\) |
| Approach 2 - Use Established Next Connections | \(O(n)\) | \(O(1)\) |
