LC240. Search a 2D Matrix II¶
Problem Description¶
LeetCode Problem 240: Write an
efficient algorithm that searches for a value target in an m x n integer matrix
matrix. This matrix has the following properties:
- Integers in each row are sorted in ascending from left to right.
- Integers in each column are sorted in ascending from top to bottom.

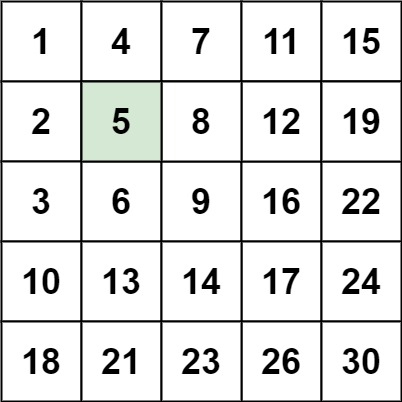

Input: matrix = [[1,4,7,11,15],[2,5,8,12,19],[3,6,9,16,22],[10,13,14,17,24],[18,21,23,26,30]], target = 5
Output: true
Clarification¶
- Search target in matrix
- row-wise and column-wise ascending
- return index or true/false
Assumption¶
Solution¶
Approach 1 - Binary Search by Row¶
Go through each row and search each row by using binary search since it is sorted.
Or we can go diagonally from top-right corner to bottom-left corner and then binary search row and column to find the target.
class Solution:
def searchMatrix(self, matrix: List[List[int]], target: int) -> bool:
m, n = len(matrix), len(matrix[0])
for i_row in range(m):
left = 0
right = n - 1
while left <= right:
mid = (left + right) // 2
if matrix[i_row][mid] == target:
return True
elif target < matrix[i_row][mid]:
right = mid - 1
else:
left = mid + 1
return False
Complexity Analysis of Approach 1¶
- Time complexity: \(O(m \log n)\)
There are \(m\) rows and search each row takes at most \(\log n\) steps using binary search. In the worst case, it will search all rows, \(m \log n\). - Space complexity: \(O(1)\)
Use several variables to search
Approach 2 - Staircase Traversal¶
Based on the sorted properties, we can use staircase traversal to search the target.
Starting from bottom-left corner (top-right corner also works):
- if target == value, return true
- if target > value, skip the current column
- if target < value, skip the current row
class Solution:
def searchMatrix(self, matrix: List[List[int]], target: int) -> bool:
m, n = len(matrix), len(matrix[0])
i_row, j_col = m - 1, 0
while i_row >= 0 and j_col < n:
if matrix[i_row][j_col] == target:
return True
elif matrix[i_row][j_col] < target:
j_col += 1 # Remove the current column
else:
i_row -= 1 # Remove the current row
return False
Complexity Analysis of Approach 2¶
- Time complexity: \(O(m + n)\)
Each step we skip one row or one column. In the worst case, we will search all rows and all columns. So the time complexity is \(O(m + n)\). - Space complexity: \(O(1)\)
Use several variables to search. No extra space is needed.
Approach 3 - Binary Search by Sub Matrix¶
We can use a recursive divide-and-conquer approach, slicing the matrix into 4 quadrants based on a middle point:
- if target < center element, bottom right quadrants can be excluded;
- if target > center element, top left quadrants can be excluded; Continue to search the rest of 3 quadrants.
zone 1 zone 2
* * * * | * * * *
* * * * | * * * *
* * * * | * * * *
* * * * | * * * *
-----------------------
* * * * | * * * *
* * * * | * * * *
* * * * | * * * *
* * * * | * * * *
zone 3 zone 4
class Solution:
def searchMatrix(self, matrix: List[List[int]], target: int) -> bool:
return self.searchSubMatrix(matrix, target, 0, len(matrix) - 1, 0, len(matrix[0]) - 1)
def searchSubMatrix(self, matrix: list[list[int]], target: int, row_start: int, row_end: int, col_start: int, col_end: int) -> bool:
# Base case
if row_start > row_end or col_start > col_end:
return False
# Find value in the middle of sub matrix
row_middle = row_start + (row_end - row_start) // 2
col_middle = col_start + (col_end - col_start) // 2
value_middle = matrix[row_middle][col_middle]
# Compare and recursively search 4 quadrants
if value_middle == target:
return True
elif value_middle > target:
# Exclude quadrant 4, search quadrant 1 and 2, and quadrant 3
return self.searchSubMatrix(matrix, target, row_start, row_middle - 1, col_start, col_end) or \
self.searchSubMatrix(matrix, target, row_middle, row_end, col_start, col_middle - 1)
else:
# Exclude quadrant 1, search quadrant 2, and quadrant 3 and 4
return self.searchSubMatrix(matrix, target, row_start, row_middle, col_middle + 1, col_end) or \
self.searchSubMatrix(matrix, target, row_middle + 1, row_end, col_start, col_end)
class Solution {
public:
bool searchMatrix(vector<vector<int>>& matrix, int target) {
if (matrix.empty() || matrix[0].empty()) return false;
int nRow = matrix.size(); // number of rows
int nCol = matrix[0].size(); // number of columns
return searchSubMatrix(matrix, target, 0, nRow - 1, 0, nCol - 1);
}
bool searchSubMatrix(vector<vector<int>>& matrix, int target, int rStart, int rEnd, int cStart, int cEnd) {
if ((rStart > rEnd) || (cStart > cEnd)) return false;
int rMid = rStart + (rEnd - rStart)/2;
int cMid = cStart + (cEnd - cStart)/2;
int midVal = matrix[rMid][cMid];
if (target == midVal) {
return true;
}
else if (target < midVal) {
// Exclude zone 4; search zone 1 + zone 2 and zone 3
return searchSubMatrix(matrix, target, rStart, rMid - 1, cStart, cEnd)
|| searchSubMatrix(matrix, target, rMid, rEnd, cStart, cMid - 1);
}
else {
// Exclude zone 1; search zone 3 + zone 4 and zone 2
return searchSubMatrix(matrix, target, rMid + 1, rEnd, cStart, cEnd)
|| searchSubMatrix(matrix, target, rStart, rMid, cMid + 1, cEnd);
}
}
};
Complexity Analysis¶
- Time complexity: \(O(\log (mn))\)
Every step it excludes \(1/4\) quadrant and search the rest \(1/2\) and \(1/4\) sub matrices. When formulate this search path as a tree, the worst path is search \(1/2\) the space each step and the best path is search \(1/4\) space each step. In the worst case, the search space is reduced by half each time. So the time complexity is \(O(\log (mn))\).
- Space complexity: \(O(\log (mn))\)
Need to recursive call functions at most \(\log (mn)\) times and need to store function call stack.
Comparison of Different Approaches¶
The table below summarize the time complexity and space complexity of different approaches:
| Approach | Time Complexity | Space Complexity |
|---|---|---|
| Approach - Binary Search by Row | \(O(m \log n)\) | \(O(1)\) |
| Approach - Staircase Traversal | \(O(m + n)\) | \(O(1)\) |
| Approach - Binary Search by Sub Matrix | \(O(\log (mn))\) | \(O(\log (mn))\) |
