LC752. Open the Lock¶

Problem Description¶

LeetCode Problem 752: You have a lock in front of you with 4 circular wheels. Each wheel has 10 slots: '0', '1', '2', '3', '4', '5', '6', '7', '8', '9'. The wheels can rotate freely and wrap around: for example we can turn '9' to be '0', or '0' to be '9'. Each move consists of turning one wheel one slot.

The lock initially starts at '0000', a string representing the state of the 4 wheels.

You are given a list of deadends dead ends, meaning if the lock displays any of these codes, the wheels of the lock will stop turning and you will be unable to open it.

Given a target representing the value of the wheels that will unlock the lock, return the minimum total number of turns required to open the lock, or -1 if it is impossible.

Clarification¶

Each move just turning one wheel one slot
Could be no turns due to deadends

Assumption¶

Solution¶

Approach - BFS¶

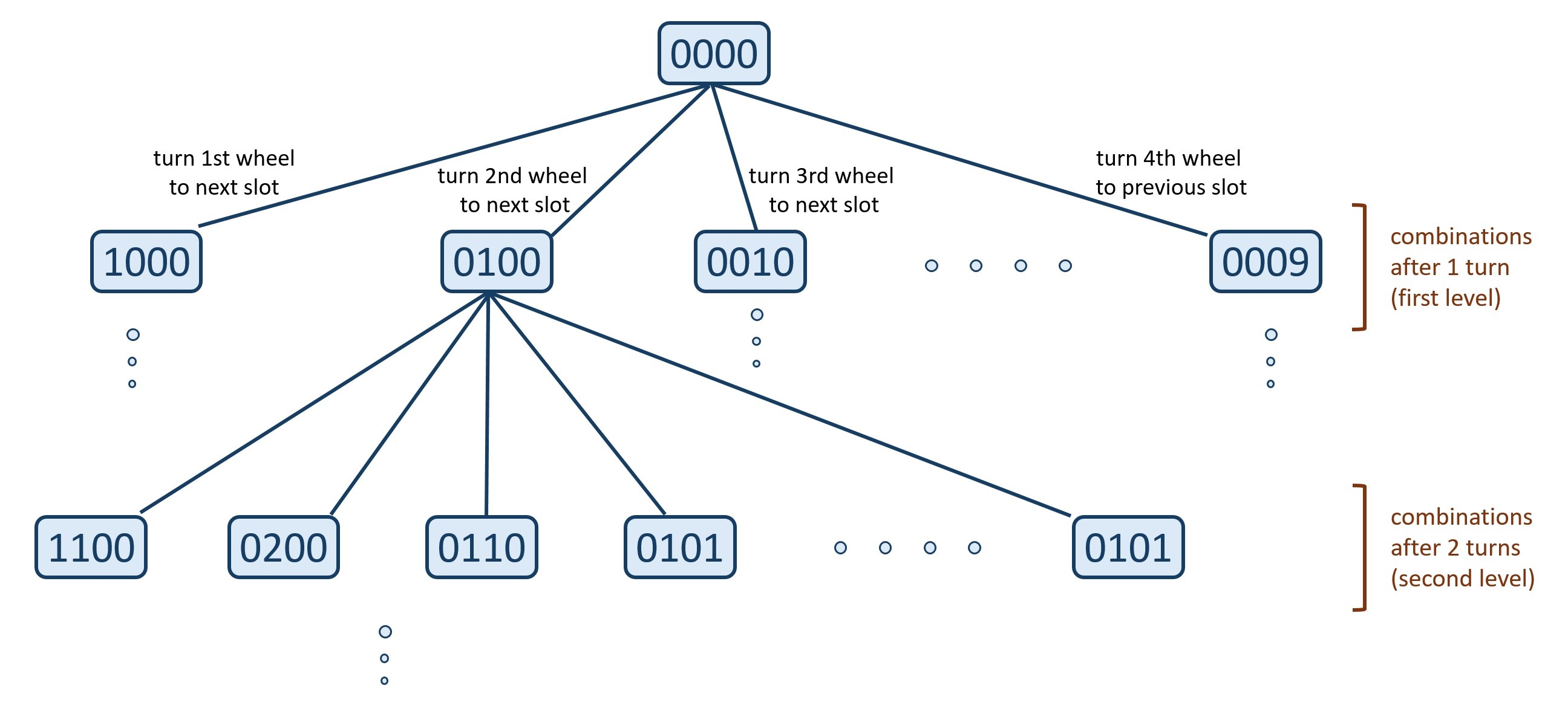

We can consider each combination is a node of a graph, and each wheel turn is an edge connecting two nodes. The given problem can be considered as how to find minimum steps from root node to target node in a graph.

We can use breadth-first search (BFS) method to traverse nodes level by level. Due to is level-order traversing, the first time is reaches the target, it is also the shorted path to the target.

Python

class Solution:
SLOTS = ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9']
N_WHEELS = 4
ROTATE_DIRECTIONS = [-1, 1]

def neighbors(self, code: str) -> str:
    for i_wheel in range(self.N_WHEELS):
        letter = code[i_wheel]
        slot_index = self.SLOTS.index(letter)
        for j_rotate in self.ROTATE_DIRECTIONS:
            next_slot_index = (slot_index + j_rotate + len(self.SLOTS)) % len(self.SLOTS)
            yield code[:i_wheel] + self.SLOTS[next_slot_index] + code[i_wheel+1:]

def openLock(self, deadends: List[str], target: str) -> int:
    if '0000' in deadends:
        return - 1

    n_turns = 0
    queue = deque()
    visited = set()
    queue.append('0000')
    visited.add('0000')

    while queue:
        current_level_node_count = len(queue)
        for _ in range(current_level_node_count):
            current_code = queue.popleft()
            if current_code == target:
                return n_turns
            for neighbor_code in self.neighbors(current_code):
                if neighbor_code not in deadends and neighbor_code not in visited:
                    queue.append(neighbor_code)
                    visited.add(neighbor_code)
        n_turns += 1

    return -1

Complexity Analysis¶

Time complexity: \(O(n^w w)\)
In the worst case, we might iterate all \(n^w\) unique combinations, where \(n = 10\) is the number of slots for each wheel and \(w = 4\) is the number of wheels of the lock. For each combination, perform \(2w\) turns, rotating left or right (twice) for each wheel. So time complexity is \(O(n^w 2 w)\) = \(O(n^w w)\)
Space complexity: \(O(n^w)\)
In the worse case, push all \(n^w\) unique combinations of length \(w\) string in the queue and the hash set. So the space complexity is \(O(2n^w w)\) = \(O(n^w w)\)
